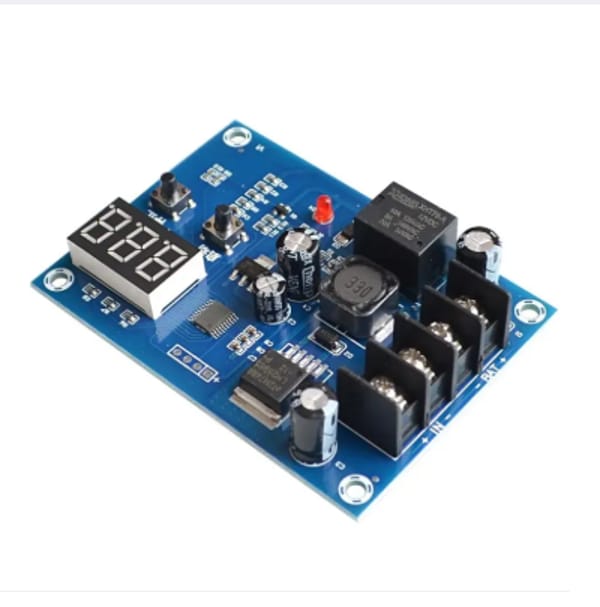

Product details of Charging Control Module XH-M603 12-24V Lithium Battery Charger protect Board 1 pcs

• Charging Control Module XH-M603 for 12-24V Lithium Batteries.

• Protects the battery with a charger protection board.

• Suitable for Electrical Trade Tools & Testers.

• Voltage Tester for Electrical Tools.

XH-M603 Charging Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board

Product Introduction:

1.Model:XH-M603

2.Input Voltage:DC 10-30V

3.Display Precision:0.1V

4.Control Precision:0.1V

5.Output Type:direct output

6.Voltage Tolerance:+/-0.1V

7.Application Fields:12-24V storage battery

8.Size;82*58*18mm

Using Method:

1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value

2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value

3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings
