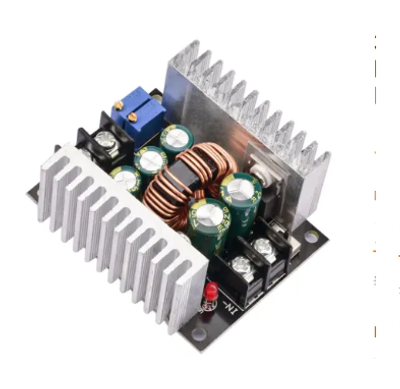

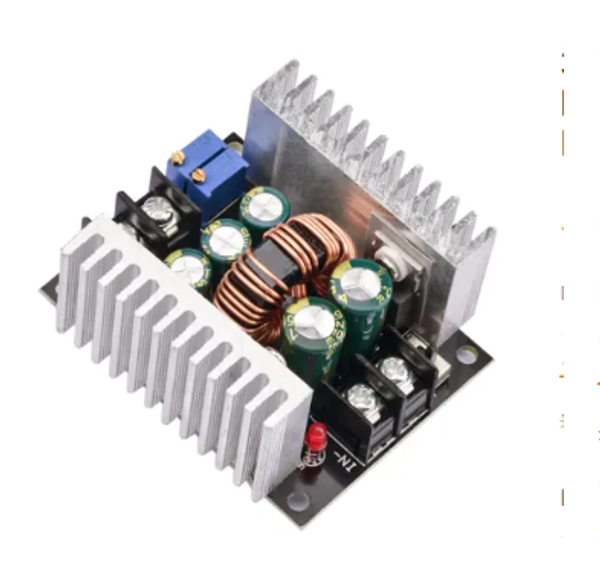

300W 20A DC-DC Buck Converter Step Down Module Constant Current LED Driver Power Step Down Voltage Module

300W 20A DC-DC Buck Converter, Buck Converter,DC Buck Converter,inav gadget, inva,invagadget

categories

Category List

All products

•

Details:

• Warranty
  no

1. Input Voltage: 6V to 40V DC(10V to 40V is suggested)
2. Output Voltage: 1.2V to 36V DC
3. Output Current: 20A(max.), 15A(suggested)
4. Efficiency: 95%(24V to 12V, 20A)
5. Output Ripple: ≤50mV
6. Wiring Method: Terminal
7. Short Circuit Protection: Self-recovery (cannot short circuit for long time)
8. Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"

300W 20A DC-DC Buck Converter Step Down Module Constant Current LED Driver Power Step Down Voltage Module

450 BDT599 BDTSave 149 BDT

sold_units 222

1

add_to_cartbuy_now

Details:

• Warranty
  no

1. Input Voltage: 6V to 40V DC(10V to 40V is suggested)
2. Output Voltage: 1.2V to 36V DC
3. Output Current: 20A(max.), 15A(suggested)
4. Efficiency: 95%(24V to 12V, 20A)
5. Output Ripple: ≤50mV
6. Wiring Method: Terminal
7. Short Circuit Protection: Self-recovery (cannot short circuit for long time)
8. Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
