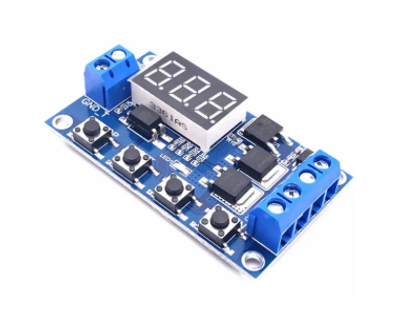

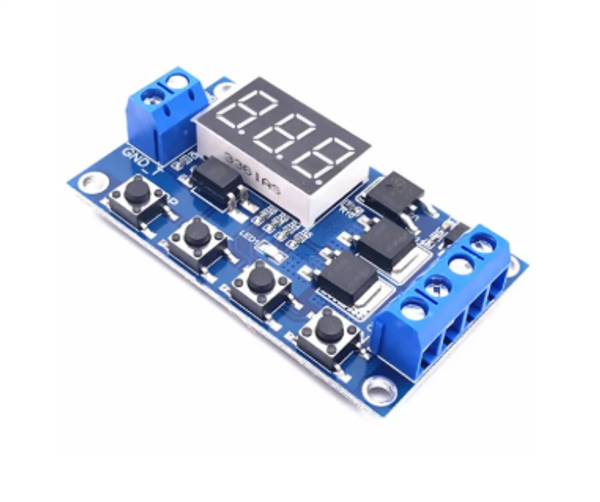

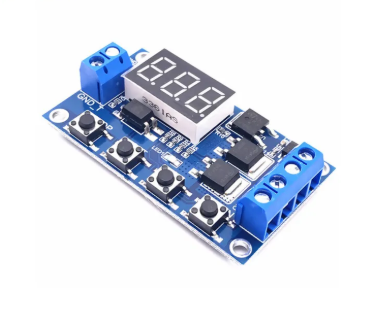

Product details of DC12V 24V XY-J04 Digital Cycle Timer Delay Switch with MOS Technology

1. Operating Voltage: DC 5V - 24V
2. Time Setting: 0.1 seconds (minimum) to 999 minutes (maximum)
3. Load Limits: 15A 400W MAX. / 5 TO 24VDC MAX
4. Trigger Voltage: 3 to 24 VDC
5. Timing Limits: 0.1 seconds (minimum) to 999 minutes (maximum)

This product is simple and easy to use, but please look at the details of the operating instructions.

Module Features & Applications :

Module Highlights:

1. Wide voltage operation (5 ~ 24V)
2. A key emergency stop function (STOP button)
3. Sleep mode, after 5 minutes, automatically turn off the display and any key to wake up
4. You can set different OP, CL, LOP parameters, these parameters are independent of each other.
5. All settings automatically save on power-down.

Operating Mode:

P1 mode: After the signal is triggered, the relay turns on the OP time and then turns off;

P-2: to trigger the signal, the relay off CL time, the relay conduction OP time, timing is completed, disconnect the relay;

P3.1: the trigger signal, the relay turns on OP time, the relay off CL time, and then cycle the above action, the cycle again to the signal, the relay off, stop the time; cycle (LOP) can be set;

P3.2: no need to trigger the signal after power-on, the relay turns on OP time, the relay disconnects the CL time, the cycle of the above action; the number of cycles (LOP) can be set;

P-4: signal hold function If there is a trigger signal, the timer is cleared and the relay remains on; when the signal disappears, the relay is turned off after the timer OP;
