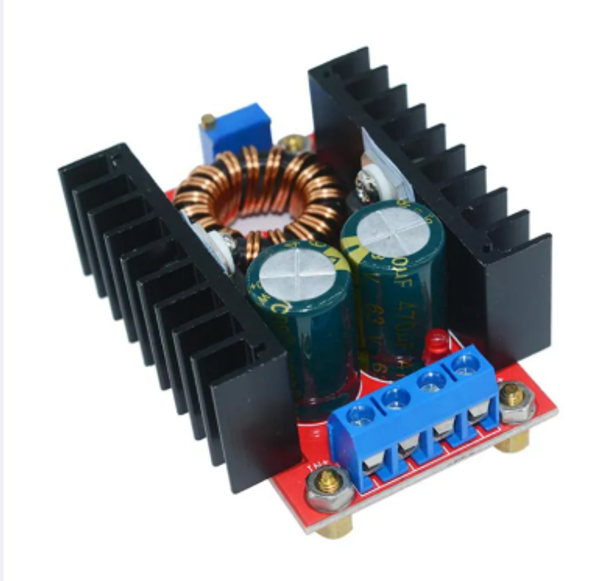

roduct details of 150W DC-DC Boost Converter Module 10A Max

1. This 150W DC-DC Boost Converter 10-30V to 12-35V module allows you to step up an input voltage as low as 10V and set the output to 12V-35V.
2. Input Voltage: 10v – 30v DC
3. Output Voltage: 12v – 35v DC
4. Output Current: 10A MAX
5. Input Current: 16A (MAX)
6. Output Ripple: 2% MAX
7. Output Power : natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
8. Conversion efficiency : 94% (Input @24V ,Output @35V/2A)
9. Output ripple : 350mV (input @12V , Output @24V/3A )
10. Working Temperature : industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to use, or – enhance cooling)
11. No-load current : 20mA typical
12. Dynamic response speed : 300uS 5%
13. Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
14. Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
15. The temperature of the step up Module should not exceed 80C
16. Size : 65*47*23.5 mm
