Details:
- Warrantyno
General Information:
- Core: ARM Cortex-M3
- Architecture: 32-bit RISC
- Operating Frequency: Up to 72 MHz
- Package: LQFP-48 (Low-profile Quad Flat Package, 48 pins)
- Flash Memory: 32 KB
- SRAM (RAM): 10 KB
- Voltage Range: 2.0V – 3.6V
- I/O Pins: Up to 37 GPIOs
- ADC:
- 10-bit or 12-bit (varies by exact model in STM32F1 line)
- Up to 10 channels
- DMA: Yes, 7 channels
- RTC: Real-time clock
Clock System:
- Internal RC oscillator (8 MHz)
- External crystal oscillator support (up to 25 MHz)
- Internal low-speed oscillator (40 kHz)
- PLL (Phase Locked Loop) for clock multiplication
Power Consumption:
- Low-power modes: Sleep, Stop, and Standby
- Suitable for battery-powered applications
Development Tools:
- IDE Support:
- STM32CubeIDE (official ST IDE)
- Keil MDK, IAR EWARM, PlatformIO (VSCode), etc.
- Programming/Debugging:
- SWD (Serial Wire Debug) interface
- ST-Link, J-Link, etc.

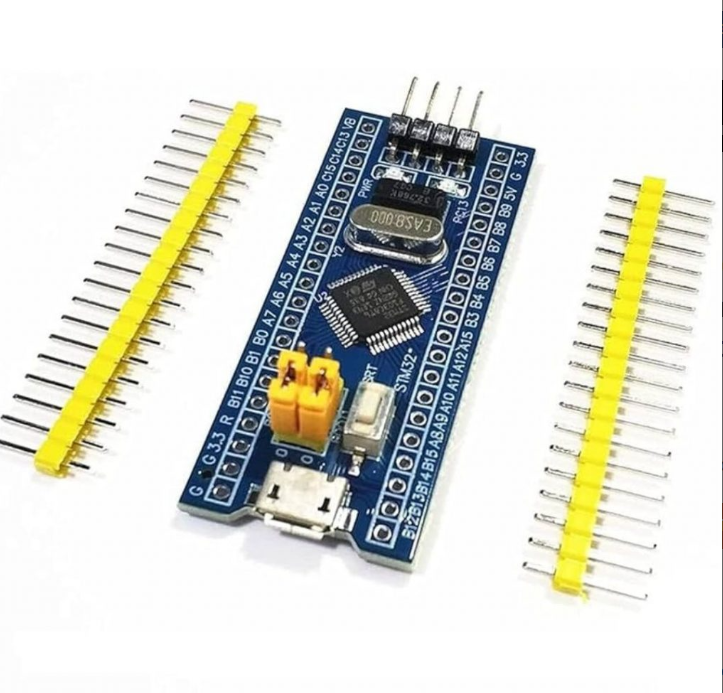

STM32F103C6T6 ARM STM32 Minimum System Development Board Module
210 BDT299 BDTSave 89 BDT
Total sold : 44
Details:
- Warrantyno
General Information:
- Core: ARM Cortex-M3
- Architecture: 32-bit RISC
- Operating Frequency: Up to 72 MHz
- Package: LQFP-48 (Low-profile Quad Flat Package, 48 pins)
- Flash Memory: 32 KB
- SRAM (RAM): 10 KB
- Voltage Range: 2.0V – 3.6V
- I/O Pins: Up to 37 GPIOs
- ADC:
- 10-bit or 12-bit (varies by exact model in STM32F1 line)
- Up to 10 channels
- DMA: Yes, 7 channels
- RTC: Real-time clock
Clock System:
- Internal RC oscillator (8 MHz)
- External crystal oscillator support (up to 25 MHz)
- Internal low-speed oscillator (40 kHz)
- PLL (Phase Locked Loop) for clock multiplication
Power Consumption:
- Low-power modes: Sleep, Stop, and Standby
- Suitable for battery-powered applications
Development Tools:
- IDE Support:
- STM32CubeIDE (official ST IDE)
- Keil MDK, IAR EWARM, PlatformIO (VSCode), etc.
- Programming/Debugging:
- SWD (Serial Wire Debug) interface
- ST-Link, J-Link, etc.
