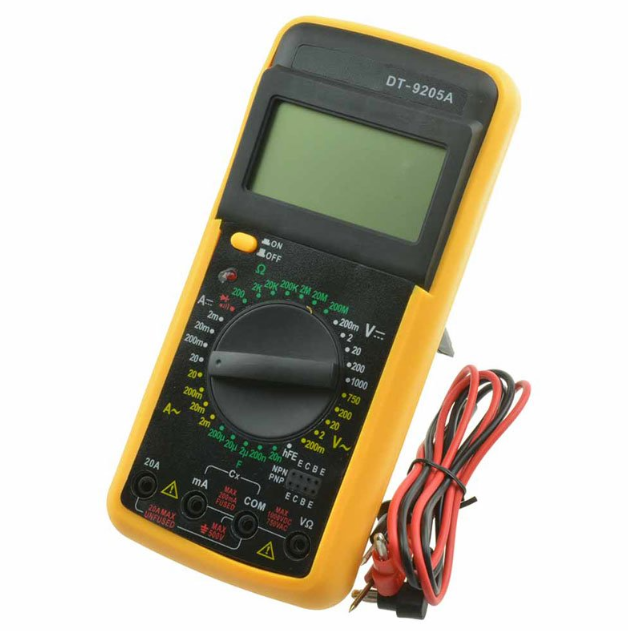

Description: DT-9205A Auto Power Off Digital Multimeter

DT9205A 9205A Digital Multimeter DT9205A Voltage Ampere Ohm Meter Test Probe Extra Large Screen LCD Display Full Range Protection With Auto Power Off

DT-9205A Auto Power Off Digital Multimeter LCD AC/DC Ammeter Resistance Capacitance Tester The DEXLE DT-9205A is a budget multimeter, it can test AC/DC voltage, current, resistance, capacitance, duty cycle, temperature, diode, continuity check etc. Besides, the portable hand-hold appearance design , high qaulity, accuracy and simple visible operation interface will make it very popular in electrical testing field.

Specifications:

1. Environmental Conditions : 600V CAT III, Pollution Degree : II. Altitude <2000 m
2. Working temperature and humidity : 0 – 40 ° C (<80% RH, <10° C is not considered)
3. Storage temperature and humidity : -10 – 60 ° C (<70% RH, battery removed)
4. Temperature Coefficient : ±0.1 Accuracy /° C (<18 ° C or > 28 ° C)
5. Allowed maximum voltage between the measuring terminal and the earth : 600V DC or 600V AC RMS
6. Fuse protection :
7. mA file: Fuse F400mA / 500V
8. 10A file: Fuse F10A / 500V
9. Sampling rate : about 3 times / sec
10. Display : 3 3 / 4 LCD display
11. Over-range indication : LCD will show “OL”
12. Low battery indication : When the battery voltage is lower than the normal operating voltage , it will be displayed on the LCD screen
13. input polarity indication : Auto shows ” – ” sign
14. DC voltage : 200mV / 20V / 200V / 1000V ± (0.5% +3)
15. AC voltage : 200mV / 2V / 20V / 200V / 750V ± (1.2% +5)
16. DC current : 20μA / 200μA / 2mV / 20mV / 200mV / 10A ± (2.0% +5)
17. AC current : 20μA / 200μA / 2mV / 20mV/ 200mV/10A ± (1.2% +5), 10A ± (2.5% +10)
18. Resistance : 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ ± (0.8% +5)
19. Capacitance : 2nF / 20nF / 200nF / 2μF / 20nF / 200nF / 2μF / 20μF / 100μF ± (3.0% +5)
20. Frequency : 9.999HZ – 9.999MHz ± (1.5% +5)
21. Duty cycle : 0.1% – 99.9% ± (3.0% +5)
22. Temperature (° C) : -20 ° C – 1000 ° C ± (3.0% +3)
23. Temperature (° F) : -4 ° F – 1832 ° F ± (3.0% +3)
24. Diode and continuity.
25. Power supply : 1 x 9V 6F22
26. Size : 195mm x 95mm x 55mm
27. Weight : 366g
28. Safety Level : CE ETL CAT.1000V CAT.600V RoHS
