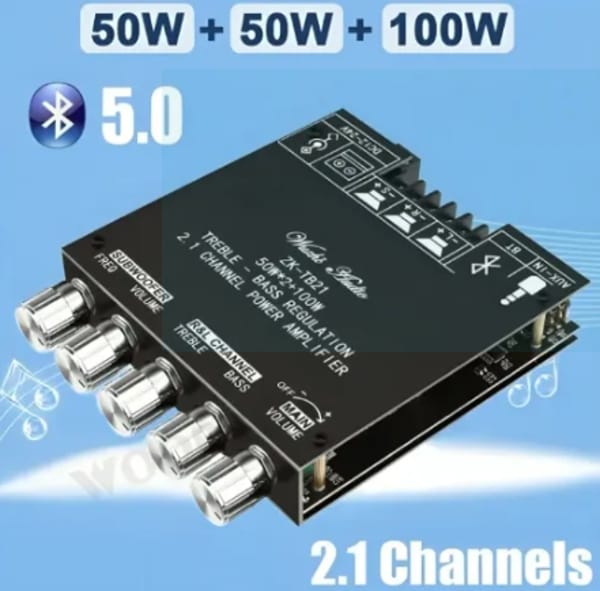

TPA3116D2 Bluetooth 5.0 ZK-TB21 Subwoofer Digital Amplifier Board 2x50W+100W 2.1 Channel Power Audio Stereo Bass AMP for Home Theater Sound System with Filter
TPA3116D2
Inva Gadget
Category List
All products
Art & Craft item
Battery
Circuit & Parts
Kitchen and Decoration
Camera and Security
women's collection
Baby Items
Pvc Board
Dron and Robotics
Mini Ups
Adapter & Charger
Switch &Cable
Fan
Soldering Iron
Lighting
Motor & Propeller
Home Degoration and Showpiece
Sound & Audio
Details:
- Warrantyno
- Origin: Mainland China
- Power amplifier chip: TPA3116D2,
- TPA3116D2 chip: with filter and AM interference suppression function
- Bluetooth-compatible version: 5.0 (unobstructed, 10 meters)
- Input sensitivity: 500mV
- Input method: AUX+Bluetooth-compatible
- Number of channels: 2.1 channels
- Adapted power supply: DC12~24V/5A or above (higher voltage, higher output power) Adapted speaker: 20~100W, 4~8 Ω
- Output power: Left and right channels ≤ 50W; Subwoofer ≤ 100W
- Protection mechanism: overvoltage, undervoltage, overheating, DC detection, short circuit protection
- Heat sink size: About 50x25x10mm/1.96x0.98x0.39inch
- Amplifier board size: About 118x100x22mm/4.64x3.93x0.86inch
- Product weight: About 190g
- Tip: Only when the audio input is sufficient and the power supply voltage/current is sufficient can there be sufficient output power. The higher the power supply voltage, the greater the output power, and the smaller the horn impedance, the greater the output power.Please ensure that the power of the adapter power supply is greater than the actual working power of the amplifier.Note:Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!Please allow 1-2cm measuring deviation due to manual measurement.
TPA3116D2 Bluetooth 5.0 ZK-TB21 Subwoofer Digital Amplifier Board 2x50W+100W 2.1 Channel Power Audio Stereo Bass AMP For Home Theater Sound System With Filter
1,450 BDT2,250 BDTSave 800 BDT
Total sold : 400
Details:
- Warrantyno
- Origin: Mainland China
- Power amplifier chip: TPA3116D2,
- TPA3116D2 chip: with filter and AM interference suppression function
- Bluetooth-compatible version: 5.0 (unobstructed, 10 meters)
- Input sensitivity: 500mV
- Input method: AUX+Bluetooth-compatible
- Number of channels: 2.1 channels
- Adapted power supply: DC12~24V/5A or above (higher voltage, higher output power) Adapted speaker: 20~100W, 4~8 Ω
- Output power: Left and right channels ≤ 50W; Subwoofer ≤ 100W
- Protection mechanism: overvoltage, undervoltage, overheating, DC detection, short circuit protection
- Heat sink size: About 50x25x10mm/1.96x0.98x0.39inch
- Amplifier board size: About 118x100x22mm/4.64x3.93x0.86inch
- Product weight: About 190g
- Tip: Only when the audio input is sufficient and the power supply voltage/current is sufficient can there be sufficient output power. The higher the power supply voltage, the greater the output power, and the smaller the horn impedance, the greater the output power.Please ensure that the power of the adapter power supply is greater than the actual working power of the amplifier.Note:Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!Please allow 1-2cm measuring deviation due to manual measurement.
