Specification:

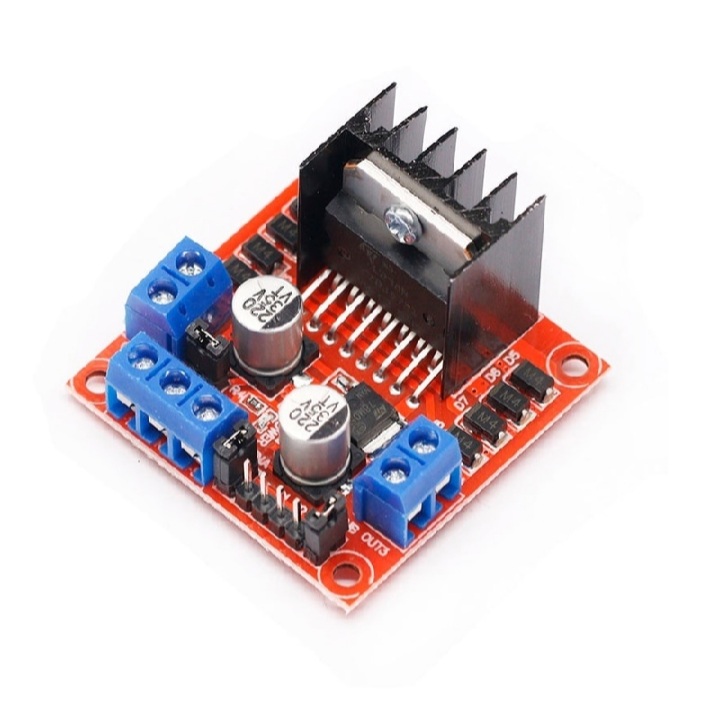

Double H bridge drive

Chip: L298N (ST NEW)

Logical voltage: 5V

Drive voltage: 5V-35V

Logical current: 0mA-36mA

Drive current: 2A(MAX single bridge)

Max power: 25W

Size:43 x 43 x 26mm

Net weight: 26g

Package weight:36g

Note:

This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply

DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.

When ENA enable IN1 IN2 control OUT1 OUT2

When ENB enable IN3 IN4 control OUT3 OUT4
