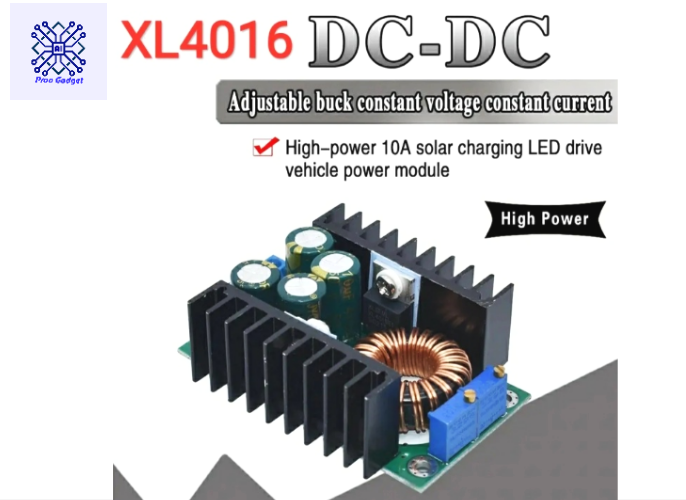

XL4016 BUCK CONVERTER HI QUALITY 300W XL4016 DC-DC Max 9A Step Down Buck Converter 5-40V to 1.2-35V Adjustable Power Supply Module
High-power, constant current LED driverBattery chargerVehicle-mounted power supplyLow voltage system power supplyNon-isolated step-down CC CV Buck module with on-board LED load indicatorInput voltage: DC 7-32VOutput Voltage: DC 0.8-28V (Adjustable)Output Current: 8A (MAX), more than 60Deg please strengthen heatsinkContinuous Current Range: 0.2-8A AdjustableOutput Power: 300W (MAX)Conversion efficiency: 95% (more input voltage, more efficiency)Output ripple: 50mVWorking Temperature: industrial (- 40 ° c to +85 °c)No-load current: 20mA (input 24V ,Output 12V for reference)Voltage regulation: ± 1%Load regulation: ± 1%Dynamic response speed: 200uS 5%Short circuit protection: YESInput Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)Size : 65 x 47 x 22 mm
Inva Gadget
Category List
All products
Art & Craft item
Battery
Circuit & Parts
Kitchen and Decoration
Camera and Security
women's collection
Baby Items
Pvc Board
Dron and Robotics
Mini Ups
Adapter & Charger
Switch &Cable
Fan
Soldering Iron
Lighting
Motor & Propeller
Home Degoration and Showpiece
Sound & Audio
Details:
- Warrantyno
High-power, constant current LED driver
Battery charger
Vehicle-mounted power supply
Low voltage system power supply
Non-isolated step-down CC CV Buck module with on-board LED load indicator
Input voltage: DC 7-32V
Output Voltage: DC 0.8-28V (Adjustable)
Output Current: 8A (MAX), more than 60Deg please strengthen heatsink
Continuous Current Range: 0.2-8A Adjustable
Output Power: 300W (MAX)
Conversion efficiency: 95% (more input voltage, more efficiency)
Output ripple: 50mV
Working Temperature: industrial (- 40 ° c to +85 °c)
No-load current: 20mA (input 24V ,Output 12V for reference)
Voltage regulation: ± 1%
Load regulation: ± 1%
Dynamic response speed: 200uS 5%
Short circuit protection: YES
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
Size : 65 x 47 x 22 mm
XL4016 BUCK CONVERTER HI QUALITY 300W XL4016 DC-DC Max 9A Step Down Buck Converter 5-40V To 1.2-35V Adjustable Power Supply Module
310 BDT399 BDTSave 89 BDT
Total sold : 754
Details:
- Warrantyno
High-power, constant current LED driver
Battery charger
Vehicle-mounted power supply
Low voltage system power supply
Non-isolated step-down CC CV Buck module with on-board LED load indicator
Input voltage: DC 7-32V
Output Voltage: DC 0.8-28V (Adjustable)
Output Current: 8A (MAX), more than 60Deg please strengthen heatsink
Continuous Current Range: 0.2-8A Adjustable
Output Power: 300W (MAX)
Conversion efficiency: 95% (more input voltage, more efficiency)
Output ripple: 50mV
Working Temperature: industrial (- 40 ° c to +85 °c)
No-load current: 20mA (input 24V ,Output 12V for reference)
Voltage regulation: ± 1%
Load regulation: ± 1%
Dynamic response speed: 200uS 5%
Short circuit protection: YES
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
Size : 65 x 47 x 22 mm
