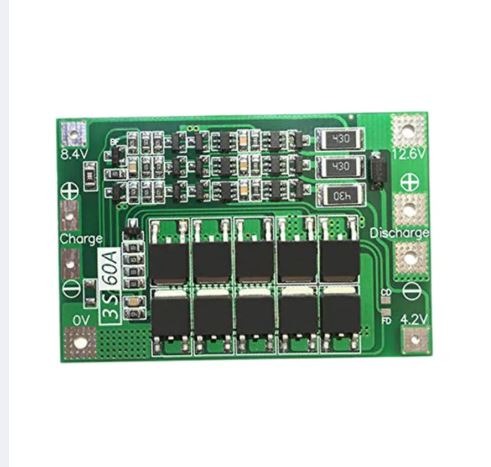

Name: 3S 60A Bms Board Lithium Li-Ion 18650 Protection Board With Balance For Drill Motor 11.1V 12.6V 18650 Lipo Cell Module
Brand: Inva Gadget
Price: 145 BDT
Availability: InStock

Inva Gadget

3S 60A Bms Board Lithium Li-Ion 18650 Protection Board With Balance For Drill Motor 11.1V 12.6V 18650 Lipo Cell Module. battery pack making,3s battery pack,li ion battery pack

Inva Gadget

Quick Spec

Charging Voltage: 12.6V ~ 13.6V
Continuous Discharge Current: 60A
Continuous Charge Current: 10A
Consuming Current: 12 ~ 24uA
Overcharge Protection Voltage: 4.2 ~ 4.3V
Balanced Starting Voltage: 4.17 ~ 4.23V
Equilibrium Current: 95 ~ 105mA
Balanced Heating Power: 1.17 ~ 1.43W
Overcharge Recovery Voltage: 4.1 ~ 4.2V
Over-discharge Protection Voltage: 2.4 ~ 2.6V
Overvoltage Protection after Over-discharge Protection: 2.8 ~ 3.8V
Over-discharge Recovery Voltage: 2.9 ~ 3.3V
Overcurrent Protection Current: 70 ~ 90A
Overcurrent Delay Time: 100 ~ 200ms
Continuous Operating Current: 0 ~ 60A
Dimensions: 41 x 60 x 3.4mm
Weight: 10g

3S 60A Bms Board Lithium Li-Ion 18650 Protection Board With Balance For Drill Motor 11.1V 12.6V 18650 Lipo Cell Module
