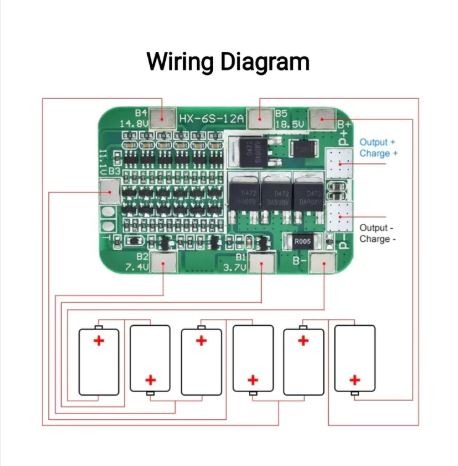

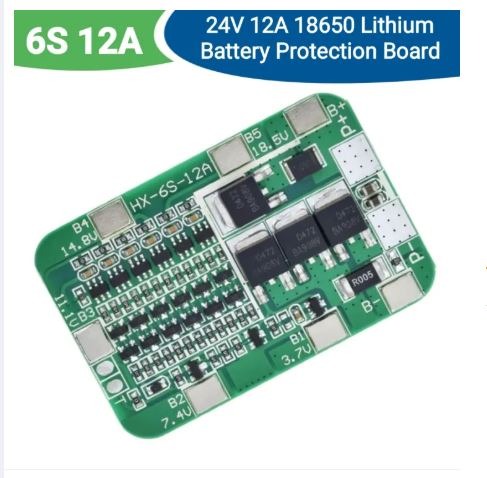

Name: 6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Cell Module
Brand: Inva Gadget
Price: 150 BDT
Availability: InStock

Inva Gadget

6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Cell Module.6s li ion bms for 24 volt li ion battery pack

Inva Gadget

Categories

Category List

All products

BMS Lifepo4 & Li-ion

Battery

Circuit & Parts

Sound & Audio

Motor & Propeller

Dron and Robotics

Pvc Board

Lighting

Kitchen and Decoration

Camera and Security

women's collection

Baby Items

Mini Ups

Adapter & Charger

Switch &Cable

Fan

Soldering Iron

Home Degoration and Showpiece

Art & Craft item

Maximum discharge current: 15A
Instantaneous discharge current: 25A
Charging voltage: 25.5V
Charging current: 15A (MAX)
Overcharge detection voltage: 4.28 ± 0.05V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08 ± 0.05V
Over discharge detection voltage: 2.55 ± 0.08V
Overdischarge detection delay: 0.1S
The overdischarge release voltage: 2.9 ± 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9MS
Overcurrent protection current: 30 ± 3A
Overcurrent protection release condition: Disconnect the load
Short circuit detection delay: 250uS
Short circuit protection Release condition: disconnect negative open
Main circuit conduction resistance: ≤20mΩ
Working current: ≤30uA
Sleep current (battery over discharge) ≤10uA
Temperature range: -30 / + 80 °

6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li-Ion Lithium Cell Module

150 BDT190 BDTSave 40 BDT

Total sold : 322
