Specification

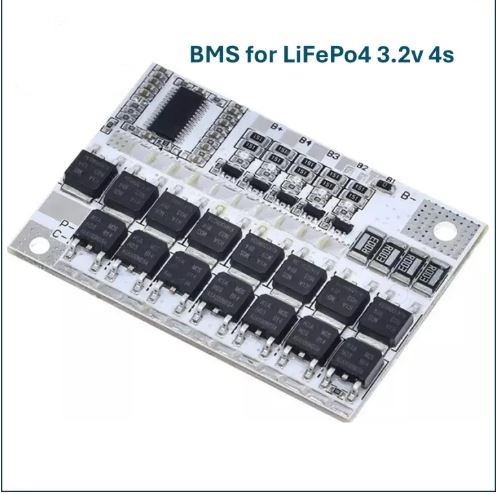

1. 4S 5S 100A LiFePO4 BMS is the primary focus for battery safety and performance.
2. Continuous Discharge Current: 100A (Max)
3. Instantaneous Discharge Current: 120A
4. Charging Voltage: 14.6V (for 4S) / 18.2V (for 5S)
5. Charging Current: 100A (Max)
6. Overcharge Protection Voltage: 3.65 ± 0.05V
7. Over-discharge Protection Voltage: 2.1 ± 0.08V
8. Balance Current: 36mA
9. Internal Resistance: ≤15mΩ
10. Dimensions: 61mm x 42mm
11. Working Temperature: -30 to +80°C
